  • FP-XG Hot Forging Presses

    FP-XG Gear Driven

    XG type is driven by gear, can reduce travel speed through gear ratio design to achieve slow molding effect. Applicable to forging molding of aluminum, copper and other non-ferrous materials, but also suitable for needs of long extension engineering forged steel parts, such as automotive transmission shaft CV-Joint.

    FP-XG Hot Forging Presses
    Feature

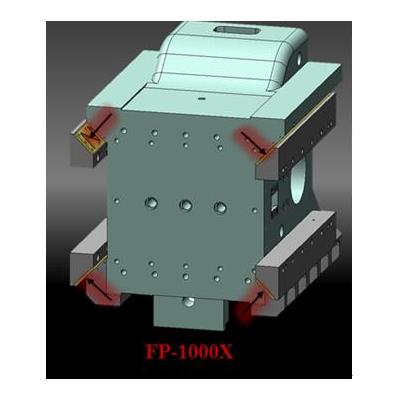

    X-type Slider Guide Rails

    Slider guide rails adopt X-type design, fully overcoming the thermal expansion phenomenon caused by the heat conducted from mold to slider when forging.



    The design makes sliding gap variation be reduced to a minimum, and long guide rail design enhances overall rigidity and eccentric load capacity, so more suitable for precision multi-station forging operations.

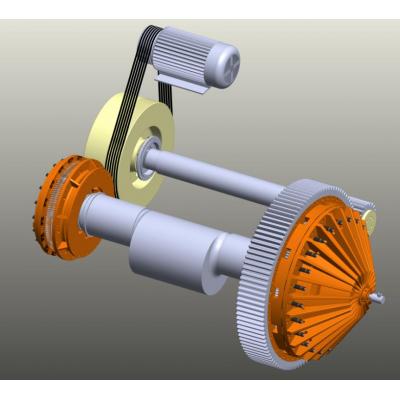

    New-type Flywheel, Large Gear Suspension Mechanism

    Revised flywheel and gear suspension way to improve flywheel and clutch weak points. After improvement,

    1. Flywheel and large gear are hung on bearing, so weight is no longer hung on eccentric shaft, and copper lining will not heat up and can reduce wear of copper lining and improve service life when rotating.

    2. New-type suspension design can ensure running smoothly without deflection of flywheel and large gear, greatly reducing the noise generated when gear is in operation and improving gear service life.

    3. Internal bearing of flywheel adopts forced machine oil lubrication, ensuring never lack of machine oil and also improving service life of bearing due to cooling effect of machine oil.

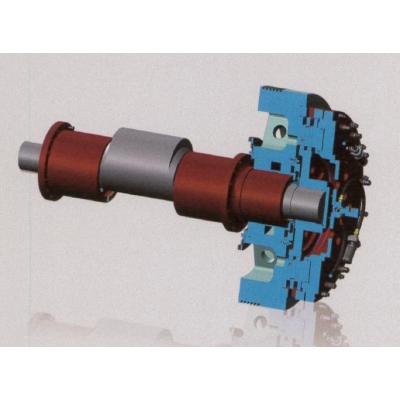

     Semi-hermetic Clutch Mechanism

    The semi-hermetic clutch mechanism guides external cooling air into clutch through rotary motion, increasing heat dissipation effect and effectively reducing internal operating temperature of clutch, increasing contact area of lining sheets, enhancing clutch transmission torque, and at the same time prolonging service life of lining sheets.

    Ultra High Rigidity Machine Frame

    1. Strength of four steel plates on top of machine frame is strengthened to make it present an arched shape, enhancing machine frame rigidity and reducing machine frame deformation, at the same time sharing eccentric shaft load and reducing impact force on machine frame to protect eccentric shaft to avoid the occurrence of fracture.





    2. The structure of machine frame is optimized, enhancing machine frame rigidity and reducing internal stress load, so more suitable for heavy duty forging operations.

    Specification

    Advantages

    Design

    High Production Efficiency Longer Die Life

    FP-XG is driven by gear, can reduce travel speed through gear ratio design to achieve slow molding effect

    High Precision Forging Parts
    Stable Product Quality

    Slider guide rails adopt X-type design

    High Safety Standard
    Ensure the Safety for Operator and Machine

    HMI Touch Screen, I/O Monitoring PLC Multi Circuit Loop System
    Micro Computer Load Meter

    Fulfill the Environmental Protection Standards

    New-type Flywheel, Large Gear Suspension Mechanism

    Easy to MaintenanceEasy to Operate

    Well Designed Lubrication System
    Mold Stuck Releasing System

    Iron, Aluminum, Copper and Titanium Alloys are Practicable in forging

    Ultra High Rigidity Machine Frame & Semi-hermetic Clutch Mechanism



    Item / Model

    Unit

    FP-600XG

    FP-800XG

    FP-1000XG

    FP-1300XG

    FP-1600XG

    Capacity

    Tons

    600

    800

    1000

    1300

    1600

    Stroke of ram

    mm

    200

    250

    250

    280

    300

    Adjustment of ram

    mm

    10

    10

    10

    10

    10

    Number of stroke

    Spm

    70

    60

    60

    60

    50

    Work number of stroke

    Spm

    18

    18

    18

    18

    18

    Shut height

    mm

    750

    850

    950

    950

    1100

    Rated tonnage point

    mm

    6

    6

    6

    6

    6

    (L-R & F-B) Ram dimension

    mm

    660*730

    770*810

    880*1050

    1020*1080

    1050*1130

    (L-R & F-B) Table dimension

    mm

    800*880

    880*1000

    1040*1080

    1140*1140

    1200*1200

    (L-R & F-B) Side window

    mm

    550*550

    600*600

    700*700

    750*700

    980*800

    Main motor

    Kw

    37kw*8p

    45kw*8p

    55kw*8p

    75kw*8p

    75kw*12p

    Ram of adjustment motor

    Kw

    0.4kw*4p

    0.75kw*4p

    0.75kw*4p

    1.5kw*4p

    1.5kw*4p

    Motor of lubrication

    Kw

    0.75kw*4p

    0.75kw*4p

    0.75kw*4p

    0.75kw*4p

    0.75kw*4p

    Ejector in the ram

    Tons-mm

    6Ton-30mm

    10Ton-30mm

    10Ton-30mm

    10Ton-40mm

    10Ton-40mm

    Ejector in the table

    Tons-mm

    8Ton-50mm

    12Ton-50mm

    12Tom-50mm

    12Tom-50mm

    17Ton-50mm

    UP-Ejector hydraulic motor

    Kw

    7.5kw

    7.5kw

    7.5kw

    7.5kw

    7.5kw

    Down-Ejector hydraulic motor

    kw

    11kw

    11kw

    11kw

    11kw

    11kw

    Working number-distance

    NO

    1

    1

    1

    1

    3-200

    Air pressure

    kg/cm2

    5

    5

    5

    5

    5

    Press weight

    kg

    50,000

    65,000

    90,000

    105,000

    140,000

    (L*W*H*) Press dimension

    mm

    3425*3405*5280

    3665*3655*5810

    3960*3975*6150

    4200*4200*6675

    4410*4435*7800



    Standard Accessories



    High Efficiency Brake System

    Tonnage Load Meter

    Overrun Protection System

    Automatic Lubrication System

    Mold Stuck Releasing System

    Hydraulic Ejector Device

    Shaft Angle Indicator

    Working light
